游戏安全

1.下载文件发现是.gba格式的

在mGBA中打开得到

1762862267_691324bbc09674ff117f6.png!small

txt文件中提示要输入正确的作弊码

2.对文件反编译

我这里用的是Ghidra10.1版本https://github.com/NationalSecurityAgency/ghidra/releases/download/Ghidra_10.1_build/ghidra_10.1_PUBLIC_20211210.zip

加GhidraGBA插件https://github.com/SiD3W4y/GhidraGBA/releases/download/10.1/ghidra_10.1_PUBLIC_20211213_GhidraGBA.zip

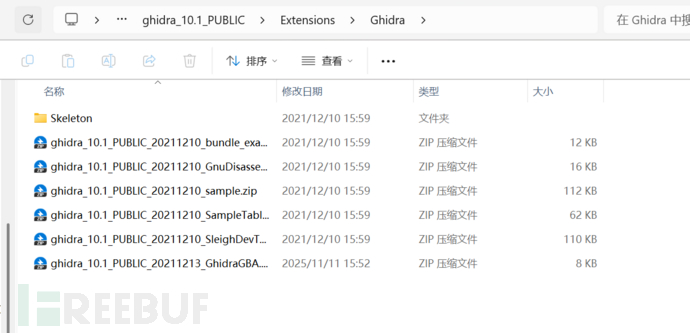

将插件压缩包直接放到Ghidra的Extensions\Ghidra\目录下

1762861959_691323878ea657204b84a.png!small

然后打开Ghidra在File->Install Extensions勾选GhidraGBA

重新打开Ghidra并导入.gba文件

3.在左侧Symbol Tree->Functions寻找关键函数

在FUN_080015a8找到

void FUN_080015a8(void)

{
  ushort uVar1;
  undefined4 uVar2;
  undefined4 uVar3;
  ushort uVar4;
  int iVar5;
  ushort *puVar6;
  undefined *local_2c;

  DISPCNT = 0x1140;
  FUN_08000a74();
  FUN_08000ce4(1);
  DISPCNT = 0x404;
  FUN_08000dd0(&DAT_02009584,0x6000000,&DAT_030000dc);
  FUN_08000354(&DAT_030000dc,0x3c);
  uVar4 = DAT_030004d8;
  do {
    DAT_030004da = uVar4;
    DAT_030004d8 = KEYINPUT | 0xfc00;
    puVar6 = &DAT_0200b03c;
    uVar4 = DAT_030004d8;
    do {
      uVar2 = DAT_030004dc;
      uVar1 = *puVar6;
      if ((uVar1 & DAT_030004da & ~uVar4) != 0) {
        if (uVar1 == 4) {
          DAT_030000d4 = 0;
          uVar3 = FUN_08001c24(DAT_030004dc);
          FUN_08001868(uVar2,0,uVar3);
          DAT_05000000 = 0x1483;
          FUN_08001844(&DAT_0200ba18);
          FUN_08001844(&DAT_0200ba20,&DAT_0200ba40);
          DAT_030000d8 = 0;
          uVar4 = DAT_030004d8;
        }
        else if (uVar1 == 8) {
          if (DAT_030000d8 == 0xf3) {
            DISPCNT = 0x404;
            FUN_08000dd0(&DAT_02008aac,0x6000000,&DAT_030000dc);
            FUN_08000354(&DAT_030000dc,0x3c);
            uVar4 = DAT_030004d8;
          }
        }
        else if (DAT_030000d4 < 8) {
          DAT_030000d4 = DAT_030000d4 + 1;
          FUN_08000864();
          if (uVar1 == 0x10) {
            DAT_030000d8 = DAT_030000d8 + 0x3a;
LAB_08001742:
            local_2c = &DAT_0200ba0c;
          }
          else if (uVar1 < 0x11) {
            if (uVar1 == 1) {
              DAT_030000d8 = DAT_030000d8 + 3;
LAB_08001766:
              local_2c = &DAT_0200b9f8;
            }
            else {
              iVar5 = 0xe;
              if (uVar1 != 2) {
LAB_0800168a:
                iVar5 = 0;
              }
              DAT_030000d8 = iVar5 + DAT_030000d8;
              if (uVar1 == 0x20) {
LAB_080016ea:
                local_2c = &DAT_0200ba08;
              }
              else if (uVar1 < 0x21) {
                if (uVar1 == 2) {
                  local_2c = &DAT_0200b9fc;
                }
                else {
                  if (uVar1 == 0x10) goto LAB_08001742;
                  if (uVar1 == 1) goto LAB_08001766;
                }
              }
              else {
                if (uVar1 == 0x80) goto LAB_08001754;
                if (uVar1 < 0x81) {
                  if (uVar1 == 0x40) goto LAB_08001778;
                }
                else if (uVar1 == 0x100) {
                  local_2c = &DAT_0200ba04;
                }
                else if (uVar1 == 0x200) {
                  local_2c = &DAT_0200ba00;
                }
              }
            }
          }
          else if (uVar1 == 0x40) {
            DAT_030000d8 = DAT_030000d8 + 0x28;
LAB_08001778:
            local_2c = &DAT_0200ba10;
          }
          else {
            if (uVar1 != 0x80) {
              if (uVar1 != 0x20) goto LAB_0800168a;
              DAT_030000d8 = DAT_030000d8 + 0x6e;
              goto LAB_080016ea;
            }
            DAT_030000d8 = DAT_030000d8 + 0xc;
LAB_08001754:
            local_2c = &DAT_0200ba14;
          }
          uVar2 = FUN_08001bc4(DAT_030004dc,local_2c);
          DAT_05000000 = 0x1483;
          DAT_030004dc = uVar2;
          FUN_08001844(&DAT_0200ba18);
          FUN_08001844(&DAT_0200ba20,uVar2);
          uVar4 = DAT_030004d8;
        }
      }
      puVar6 = puVar6 + 1;
    } while (puVar6 != (ushort *)&UNK_0200b050);
  } while( true );
}

4.分析一下代码

do {
    DAT_030004da = uVar4;
    DAT_030004d8 = KEYINPUT | 0xfc00;

这是一个无限循环

DAT_030004da = uVar4;：保存上一帧的按键状态。

DAT_030004d8 = KEYINPUT | 0xfc00;：

KEYINPUT是 GBA 按键寄存器。

| 0xfc00：屏蔽高 6 位，只保留低 10 位按键（A, B, L, R, Start, Select, 上下左右）。

结果存入DAT_030004d8表示当前按键状态。

puVar6 = &DAT_0200b03c;
uVar4 = DAT_030004d8;
do {
    uVar2 = DAT_030004dc;
    uVar1 = *puVar6;

puVar6指向按键掩码数组：

每个元素对应一个按键的 bit 掩码。

按键	bit 位	掩码（十六进制）	掩码（十进制）
A	0	0x0001	1
B	1	0x0002	2
Select	2	0x0004	4
Start	3	0x0008	8
Right	4	0x0010	16
Left	5	0x0020	32
Up	6	0x0040	64
Down	7	0x0080	128
R	8	0x0100	256
L	9	0x0200	512

uVar2 = DAT_030004dc：保存当前游戏状态，供函数调用使用。

uVar1 = *puVar6：当前遍历的按键掩码。

if ((uVar1 & DAT_030004da & ~uVar4) != 0)

这里是防止按键持续按下多次触发

if (uVar1 == 4) {
    DAT_030000d4 = 0;
    uVar3 = FUN_08001c24(DAT_030004dc);
    FUN_08001868(uVar2,0,uVar3);
    DAT_05000000 = 0x1483;
    FUN_08001844(&DAT_0200ba18);
    FUN_08001844(&DAT_0200ba20,&DAT_0200ba40);
    DAT_030000d8 = 0;
    uVar4 = DAT_030004d8;
}

select键重置

else if (uVar1 == 8) {
    if (DAT_030000d8 == 0xf3) {
    DISPCNT = 0x404;
    FUN_08000dd0(&DAT_02008aac,0x6000000,&DAT_030000dc);
    FUN_08000354(&DAT_030000dc,0x3c);
    uVar4 = DAT_030004d8;
    }
 }

start键

当DAT_030000d8 == 0xf3时会刷新显示模式，可能是通关条件

else if (DAT_030000d4 < 8) {
    DAT_030000d4 = DAT_030000d4 + 1;
    FUN_08000864();

这里限制了按键的次数小于8

if (uVar1 == 0x10) {
    DAT_030000d8 = DAT_030000d8 + 0x3a;
LAB_08001742:
    local_2c = &DAT_0200ba0c;
}

→按键会使DAT_030000d8增加0x3a

后面省略一些于是我们可以得到

按键掩码	增加值
0x10	+0x3a
1	+3
2	+0xe
0x20	+0x6e
0x40	+0x28
0x80	+0xc
0x100	+0
0x200	+0

5.最后我们可以得到这样一张表

按键掩码	按键	DAT_030000d8 增加值
1	A	+3
2	B	+0x0e (14)
4	Select	0（无增加值，重置）
8	Start	条件触发（0xf3时触发其他动作，其他情况无增加值）
0x10 (16)	Right	+0x3a (58)
0x20 (32)	Left	+0x6e (110)
0x40 (64)	Up	+0x28 (40)
0x80 (128)	Down	+0x0c (12)
0x100 (256)	R	+0（未修改）
0x200 (512)	L	+0（未修改）

结合上面DAT_030000d8== 0xf3(243)的条件

我们得到以下组合

组合序号	按键及次数
1	A ×1, Up ×6
2	A ×1, B ×1, Right ×2, Left ×1
3	A ×1, B ×1, Down ×1, Up ×1, Right ×3
4	A ×1, B ×1, Down ×3, Up ×2, Left ×1
5	A ×3, B ×1, Left ×2
6	A ×3, B ×1, Down ×1, Up ×1, Right ×1, Left ×1

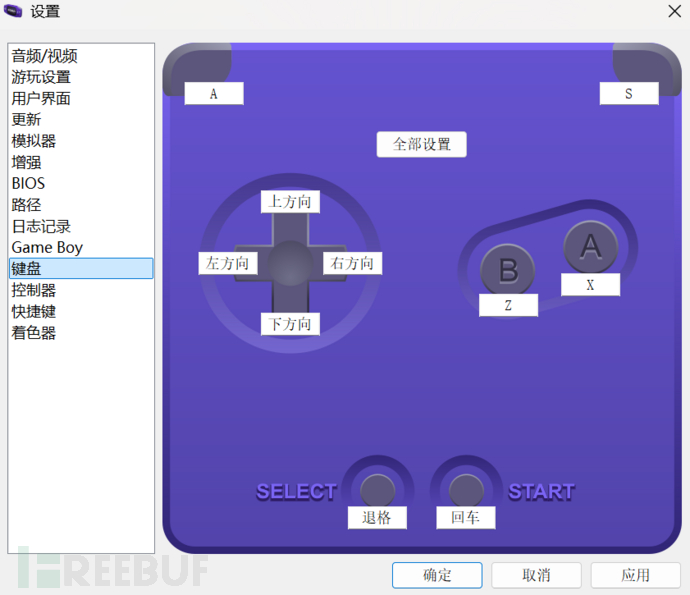

6.在mGBA->工具->设置->键盘可以看到对应按键

1762866987_6913372b2a70d81f52f65.png!small

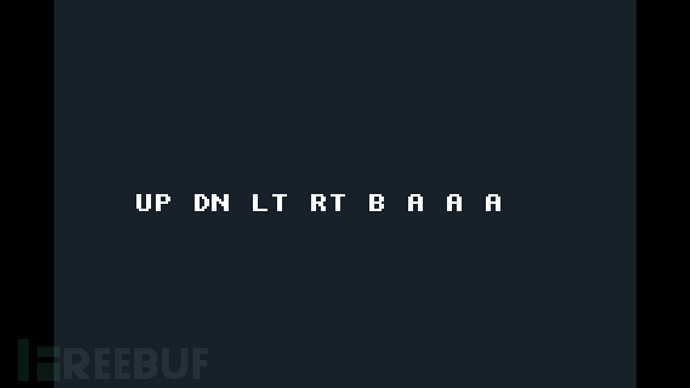

7.敲下其中一种组合

1762866906_691336da69934c694c964.png!small

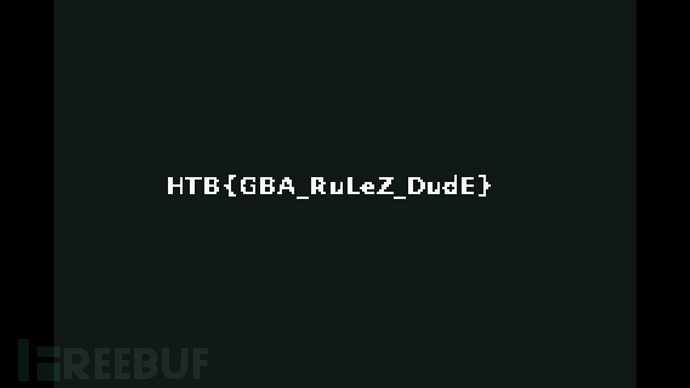

按下回车得到flag

1762867022_6913374e5e6ac7d432f95.png!small
